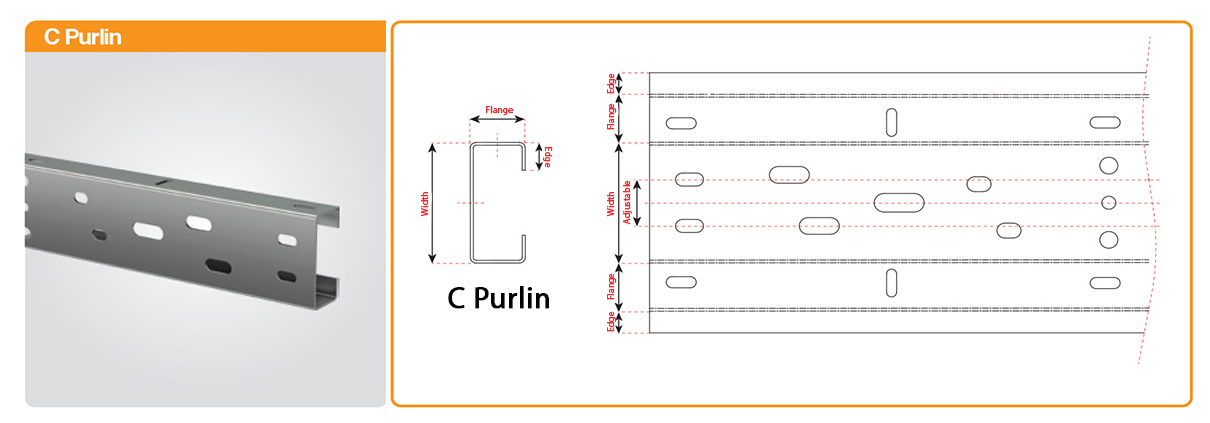

• C Purlin
  • Technique: Slitting, Roll forming
  • Raw material: Hot-Rolled, Cold-Rolled and Galvanized Sheet
  • Quality:
    EN 10025 (S235JR/S275JR/S355JR)
    DIN 17100 (RSt37-2/St44/St52/St12)
    EN 10346 (DX51D), JIS G 3302 (SGCC)
  • Thickness: 1-4.5 mm
  • Width: 50-450 mm
  • Flange: 25-150 mm
  • Edge: 10-30 mm
  • Length: Max. 13 meters
  • Length Tolerance: ±1 mm
  • Punch Hole Type: Round, elongated
  • Application: Building industry, Shed construction, Solar systems (solar panels), Machinery manufacturing
